REVERSE ENGINEERED OBJECT: PROGRESS II



This is my process so far. I made most big parts of the outer shell, and now I am moving to more details and small parts. I think if I have more time, I will be able to finish most parts of the clock.
However, I have not successfully made screws yet. I stuck in the little triangle part for screws.

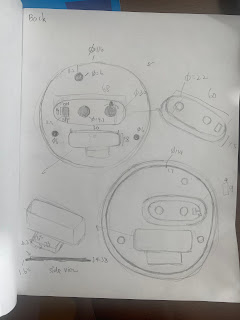

Drawings

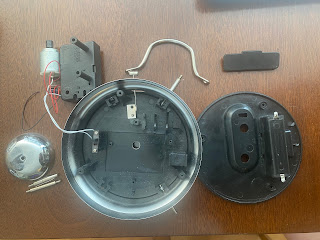

More pieces
