MILESTONE PROJECTS



1. Castle:

Since I missed two weeks of class, that time I didn't have any logic to build a castle😿.

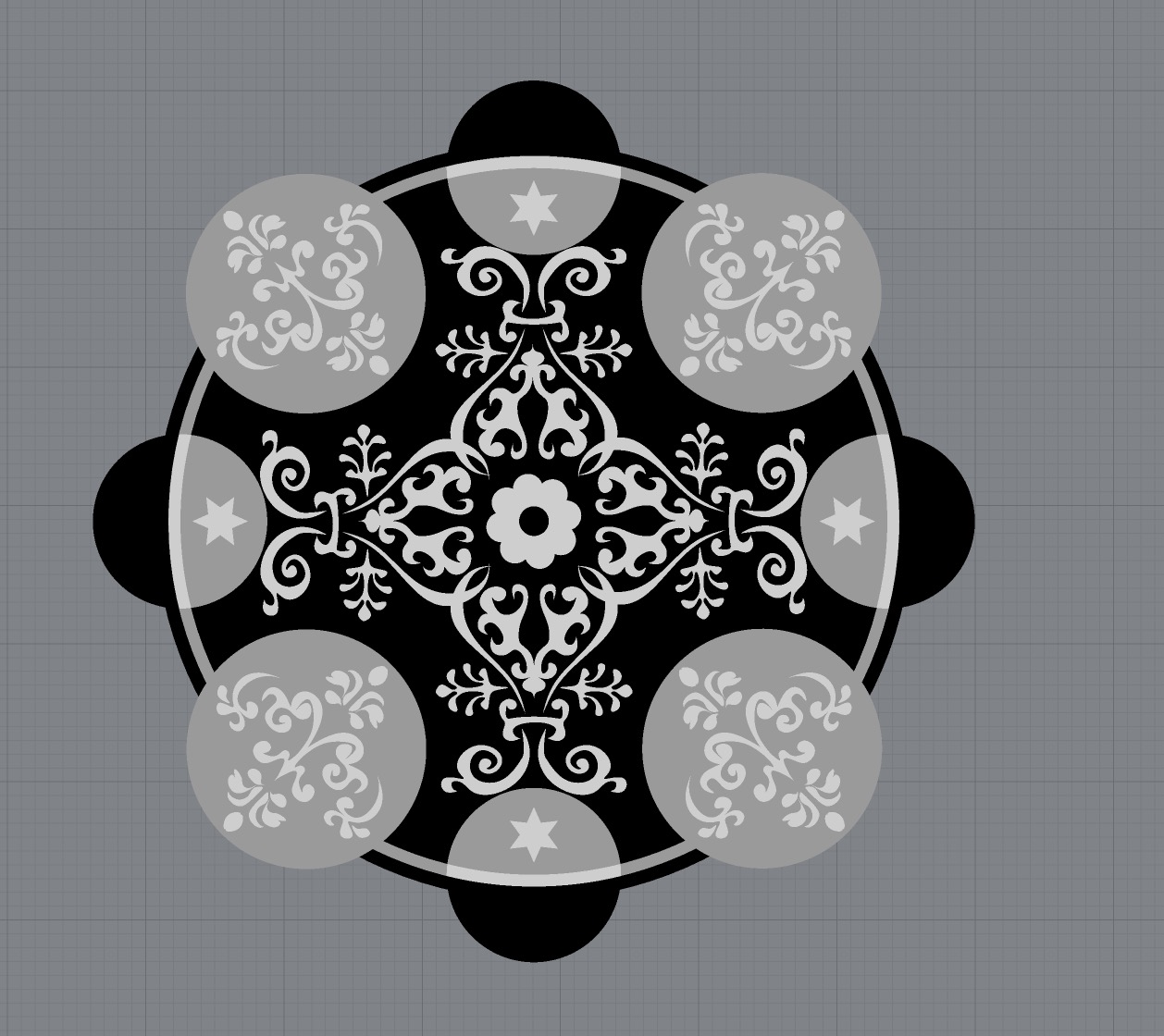

2. Surface Design Study (Color):

At that time, I barely knew how to use the Hatch and control the curves in Rhino😓.

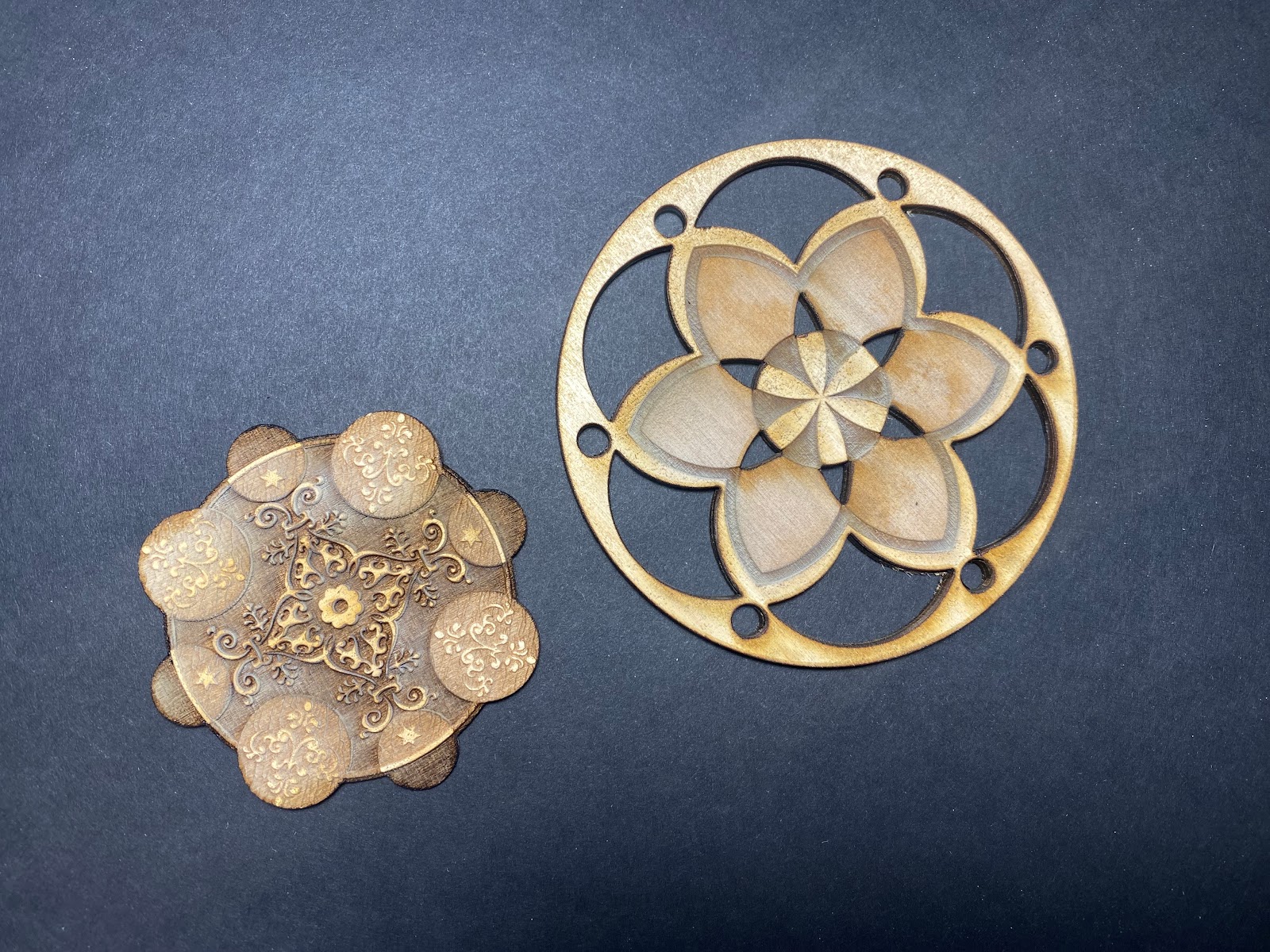

3. Surface Design Study (Laser Cut Sample)
Thanks to Arica, she helped me to print a few samples to test the better colours and shapes👯








4. Reverse Engineered Object

My biggest project ever 🙊 it takes me a few weeks to work on. I wanted to choose an object that challenges me and looks good in my portfolio, but I also need to make sure I can finish it.







4.5 The Ring👏

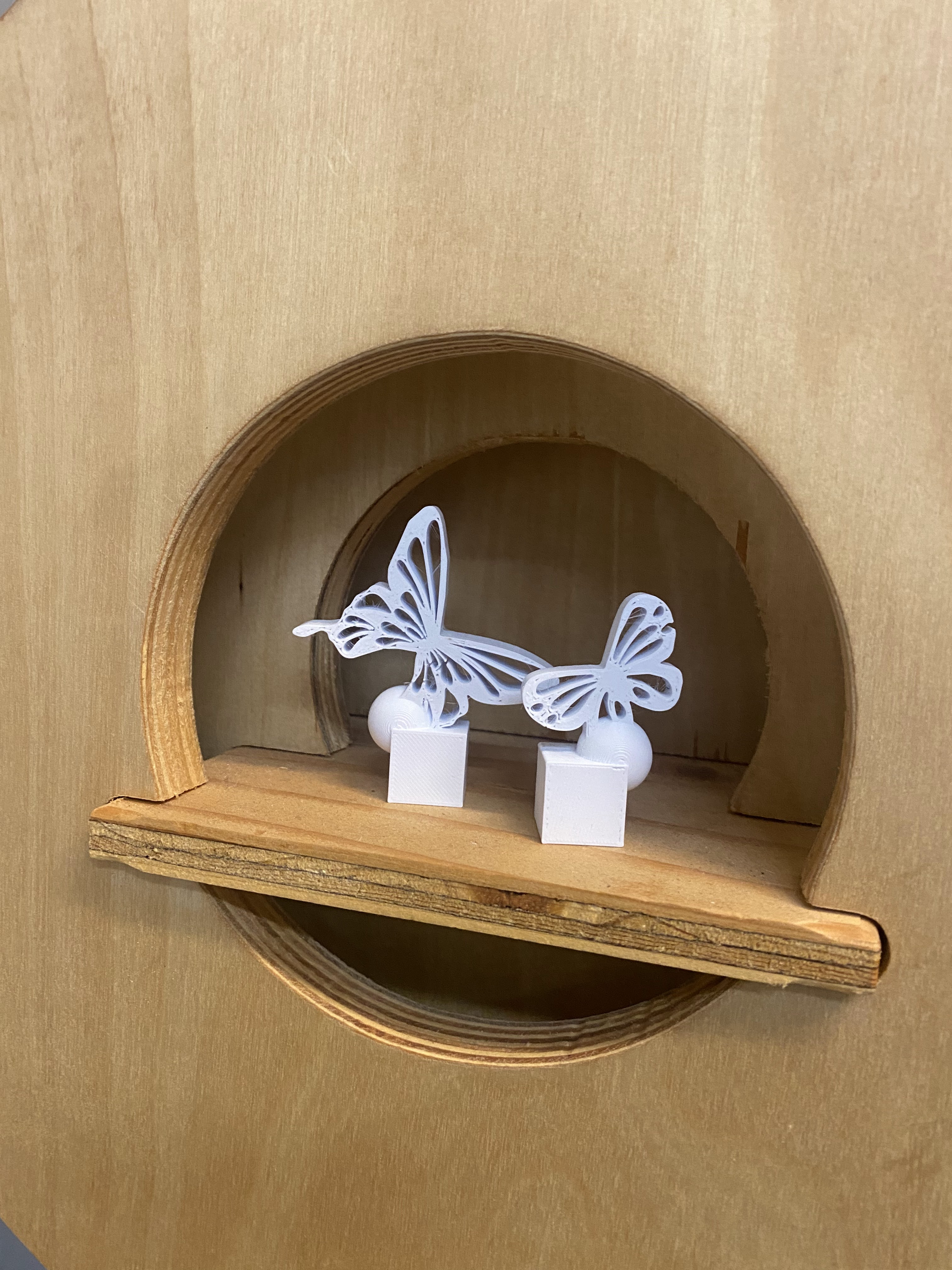

5. 3D Printed Chess Set 💪
Due to the super tight schedule during the final time, I have not finished the set. But I made two examples and they are now in 3D printing. So it is very doable for me to draw and print them all.
